EW Systems
Naval Advanced EW Systems
DESM
Digital Electronic
Support Measure
DESM is a fully Digital ESM system, sold in Western and Easterns Countries. It is based on a wide-open “folded” Digital Receiver architecture and provides very good performances. The Direction-Finding measurement is based on both Amplitude and Phase comparison, achieving very good accuracy in spite the small antenna array dimension. DESM has a large library and is ready to be integrated with CMS Multifunction Console.
driac
DESM & AESAJ Integrated ESM-ECM Systems
DRIAC is an advanced “all-digital” Integrated ESM-ECM System based on the state of art technology of Direct RF sampling, up to 18 GHz, providing very good performances by means of few digital modules, Software/Firmware controlled.
Therefore, beside the high performances and reliability, DRIAC exhibits also a very good cost-effectiveness and a minimal logistic support effort.
The passive section consists of the well-known DESM system, a Digital ESM based on multiple Digital Receivers (DRX). The ECM section is based on a Solid State Active Electronic Steering Antenna for Jamming (AESAJ) unit that receives the DRFM signals from DESM and radiate them at high Effective Radiated Power (ERP).
DRIAC results in a robust ESM-ECM System that can be easily installed in different types of platform.
DFU
AESAJ HB
DMU
AESAJ HB
CONSOLE
DRIAC: Main Performances
Passive Section (DESM)
-
Wide Open Architecture (from L to Ka band) Channelized
-
RF Instantaneous Bandwidth more than 16 GHz
-
POI 100 %
-
Very high Receiver Sensitivity (class better than -70dBm)
-
Programmable Sensitivity vs Frequency
-
On board Compatibility granted by the high Dynamic Range and by SW algorithms
-
Traffic > 1 Mpps and CW signals
-
Emitters type Pulsed, MOP, CW
-
Known and unknown emitters detection
-
Tracked emitters 256
-
Very high DOA accuracy (class 1°RMS)​​
Active Section (Countermeasures)
-
ECM Frequency Coverage 6- 18 GHz and 2-6 GHz, as option
-
Angles Coverage 360° Azimuth & 30° Elevation (ty pical)
-
Multi-threats 4+4
-
Effective Jamming Techniques Programmable and suitable for SPJ and EAJ
-
Weight and Power Consumption 15 Kg, 1500 W
​
NEC
Naval Electronic Chaff

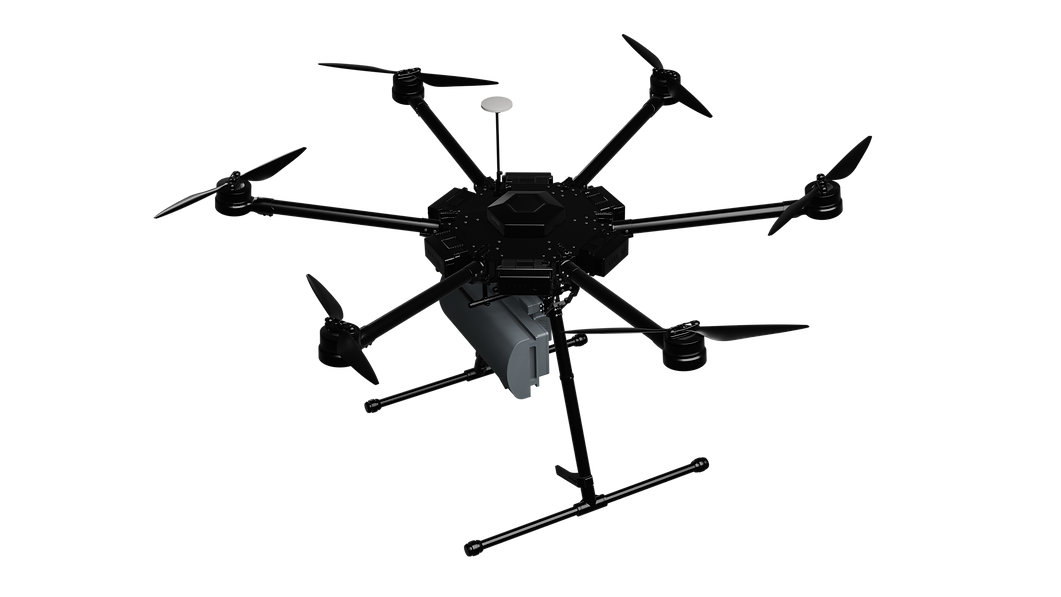

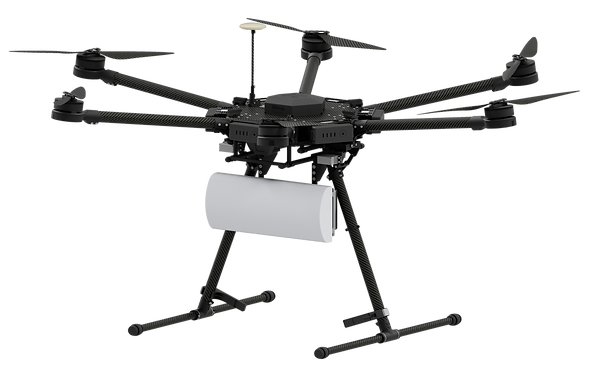

NEC (Naval Electronic Chaff) System is an effective final protection for a ship against the most advanced anti-ship missile systems. NEC is composed of a Drone and an advanced Payload.
The drone can leave suddenly the ship, fly according to a pre-programmed path and come back to the ship.
The payload is able to generate a credible target with very high RCS, to seduce and distract the antiship missile.
Airborne Advanced
EW Systems
DRIAC-A
(Airborne
& UAV Applications)
Integrated ESM-ECM Systems for Airborne Application
DRIAC-A is a new Digital Integrated EW System capable of providing very advanced performances by exploiting very few SW controlled electronic modules, so being able to meet the changing requirements of the modern airborne environment in a very cost effective way.
DRIAC-A can be provided for fighters or for helos / transport aircrafts.
​
Beside the features of an advanced digital ESM, DRIAC-A is capable of producing both Self Protection Jamming (SPJ) and a very effective Electronic Attack Jamming (EAJ) in a very wide frequency band. EAJ is very useful in airborne operations because it facilitates the platform penetration in a hostile territory.
DRIAC-A: Main Performances
Passive Section (DESM)
-
Wide Open Architecture (from L to Ka band) Channelized
-
RF Instantaneous Bandwidth more than 16 GHz
-
POI 100 %
-
Very high Receiver Sensitivity (class better than -70dBm)
-
Programmable Sensitivity vs Frequency ​​
​
-
On board Compatibility granted by the high Dynamic Range and by SW algorithms
-
Traffic > 1 Mpps and CW signals
-
Emitters type Pulsed, MOP, CW
-
Known and unknown emitters detection
-
Tracked emitters 256
-
Very high DOA accuracy (class 1°RMS)​​
Active Section (Countermeasures)
-
ECM Frequency Coverage 6- 18 GHz and 2-6 GHz, as option
-
Angles Coverage 360° Azimuth & 30° Elevation (ty pical)
-
Multi-threats 4+4
-
Effective Jamming Techniques Programmable and suitable for SPJ and EAJ
-
Weight and Power Consumption 15 Kg, 1500 W
​
AEC
Airborne Electronic Chaff (decoy)
Since many years, Virtualabs started its own study to develop a cost-effective Airborne Electronic Chaff (AEC).
AEC is a small expendable capable of re-transmitting toward radars/seekers a credible strong signal. It can be housed in a standard 1” by 1” chaff launcher. Recently we considered also a 2”x1” chaff Launcher.
